RPS Power Supply Series™ Model RPS1204

RPS Power Supply Series™ is a unique and a highly reliable power supply series. It is used as a redundant power supply for NETGEAR® RPS capable PoE, 10/100 Ethernet, and Gigabit Ethernet switches. The RPS Power Series™ is designed for Universal AC to DC power supply applications. Because of this feature these power supplies can be used anywhere in the world.

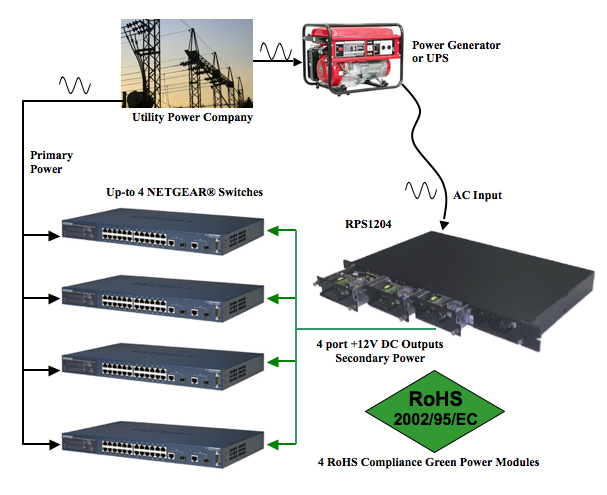

The Model RPS1204 is a HOT-SWAP 1U rack mountable RPS (Redundant power supply) system. The RPS has 4 modules each capable of supporting a NETGEAR switch. The unique HOT- SWAP capability of RPS1204 gives the end user flexibility to change the configuration in field.

The RPS Power Series™ is designed for Universal AC to DC power supply applications. Because of this feature these power supplies can be used anywhere in the world.

Specifications:

Electrical

Output Voltage	4 ports @ +12V DC, (400W in total)
Output Ripple	Typical 120mV
Output Current	Typical 9A max. per port
Output Power*	100W per port
Input Voltage	Universal 90VAC to 264VAC input
Input Frequency	47Hz to 63Hz
Input Current	5 Ampere maximum

Typical Safety Rating For Internal Power Bricks

Designed in full compliance with	UL60950
	CSA 222 No 234
	EN60950
EMI	EN55022 "Class A"
EMS	EN61000-4-2,-3,-4,-5,-6,-8,-11
Harmonics	EN61000-3-2 Class D

Environmental

Overload Protection	Auto-recovery
Functional Temperature	0 to 70 °C
Storage Temperature	-20 to 85 °C
Over voltage Type	Latch off
Efficiency	80-90% Typical
RoHS	YES
Dimensions	1U (1.75" H x 19" W x 12.12" D)
Weight Approx.	7.75 lb

Model Number Table

Supported NETGEAR® Switch Model	Optimal Power RPS Models	Optimal Power DC Cable	Data Sheet	Pricing
GSM7224-200	RPS1204	RPSC1204	RPS1204 data sheet	$3000.00 USD
GSM7248-200	RPS1204	RPSC1204
GSM7328S-200	RPS1204	RPSC1204
GSM7352S-200	RPS1204	RPSC1204
GSM7328FS	RPS1204	RPSC1204

* NOTE The Model RPS1204 is built to order. Please contact us at sales@optimal-power.com or 251-209-8088 for information on NETGEAR® RPS systems
